haproxy 安装部署

发表于 2017-02-20 | 分类于 haproxy

前言

本篇主要介绍haproxy安装部署，以及通过rabbitmq集群高可用案例，简单的介绍了haproxy的配置，启动及关闭等基本操作。

安装过程

下载haproxy-1.5.8.tar.gz
cd /usr/local/
wget http://www.haproxy.org/download/1.5/src/haproxy-1.5.8.tar.gz

tar -zxvf haproxy-1.5.8.tar.gz
cd haproxy-1.5.8/
uname –a //查看linux内核版本及位数
#linux2.6以上的版本，TARGET=linux26，ARCH操作系统位数，PREFIX安装目录。
make TARGET=linux26 ARCH=x86_64 PREFIX=/usr/local/haproxy/
make install PREFIX=/usr/local/haproxy/

cd /usr/local/haproxy/
mkdir conf log
cp haproxy-1.5.8/examples/haproxy.cfg haproxy/conf/

#清除无用源文件
rm -rf haproxy-1.5.8/

rabbitmq集群配置(TCP四层代理)

#修改/usr/local/haproxy/conf/haproxy.cfg配置文件
global
    daemon
    maxconn 128
    nbproc 1
    uid 500
    gid 500
    chroot /usr/local/haproxy
    pidfile /usr/local/haproxy/log/haproxy.pid
    log 127.0.0.1 local3 err
defaults
    mode http
    maxconn 128
    timeout connect 5000ms
    timeout client 50000ms
    timeout server 50000ms

    retries 3
    balance roundrobin
    option httplog
    option httpclose
    option abortonclose
    option redispatch
    log 127.0.0.1 local3 err

#rabbitmq集群监控界面
listen rabbitmq-monitor
    bind 0.0.0.0:15672
    mode http
    balance source
    option httpchk GET /
    server rabbitmq-node1 10.116.84.117:15673 cookie rabbitmq-node1 check inter 3000 rise 3 fall 3 weight 1
    server rabbitmq-node2 10.116.84.117:15674 cookie rabbitmq-node2 check inter 3000 rise 3 fall 3 weight 1

#rabbitmq集群访问入口
listen rabbitmq-cluster
    bind 0.0.0.0:5672
    mode tcp
    balance roundrobin
    option tcplog
    option tcpka
    server rabbitmq-node1 10.116.84.117:5673 check inter 3000 rise 3 fall 3 weight 1
    # rabbitmq-node2作为备份节点，当rabbitmq-node1宕机之后，rabbitmq-node2开始对外提供服务
    server rabbitmq-node2 10.116.84.117:5674 check inter 3000 rise 3 fall 3 weight 1 backup

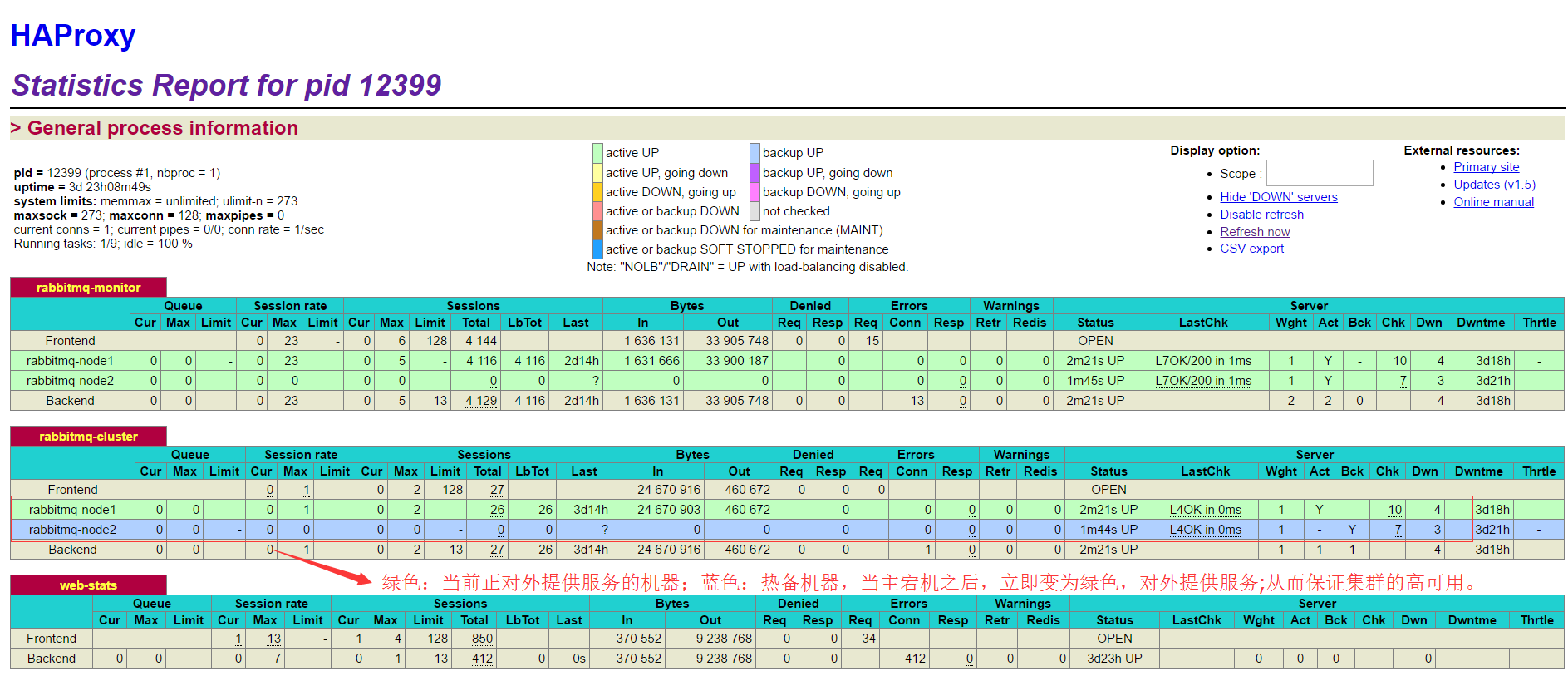

#haproxy监控界面
listen web-stats
    bind 0.0.0.0:1080
    #log global
    stats refresh 30s
    stats uri /web-stats
    stats realm HaproxyMonitor
    stats auth root:123456
    stats hide-version
    #stats admin if TRUE

启动/关闭

#启动
/usr/local/haproxy/sbin/haproxy -f /usr/local/haproxy/conf/haproxy.cfg
#关闭
pkill haproxy 或 killall haproxy
